KM10000io-GW250

Classification: DIESEL GENERATOR WELDER

Document download：

Please enter the password

OK Close
Make an inquiry
KM10000io-GW250
KM10000io-GW250
KM10000io-GW250
KM10000io-GW250
KM10000io-GW250
KM10000io-GW250
+
  • KM10000io-GW250
  • KM10000io-GW250
  • KM10000io-GW250
  • KM10000io-GW250
  • KM10000io-GW250
  • KM10000io-GW250
  • Parameters
  • KM1000010-GW250
    Generator Rated power 650OW
    Maximum power 70OOw
    Rated voltage 230V
    Rated frequency 50/60Hz
    Welding Welding voltage 20.8-27.2V
    Welding current 20-250A
    Load cycle 60%
    Welding rod diameter 1.2-5.0mm
    Engine Power model KM192F
    Power type OHV, Single Cylinder, 4-stroke
    Displacement 498cc
    Power output 11.0hp
    Starting method Recoil/E-start
    Fuel tank capacity 25L
    Engine oil capacity 1.65L
    Packaging materials Packaging dimensions 69.5×58X87.5cm
    Net weight/Gross weight 115/117kg
    20GP/40HQ 64/201

Pre no

no Next

pre

no

Next

no

Related products

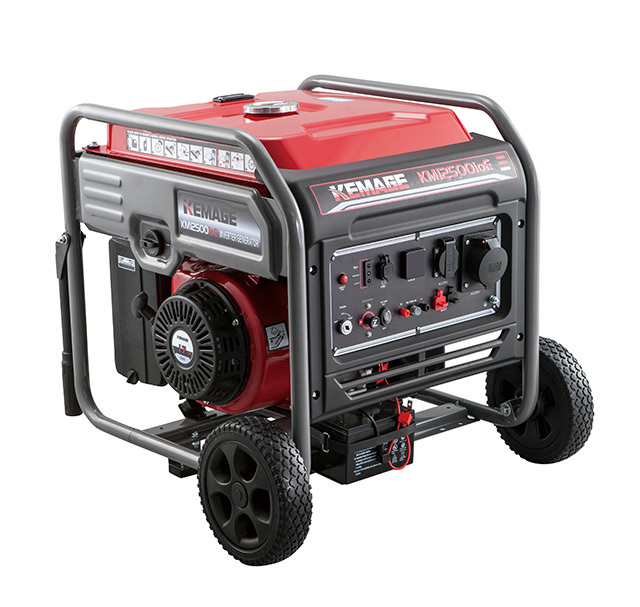

KM12500io-KC

KM12500io-KC

Rated power: 7000W
Maximum power: 8000W
Rated voltage: 230V
Rated frequency: 50/60Hz
Rated current: 304A

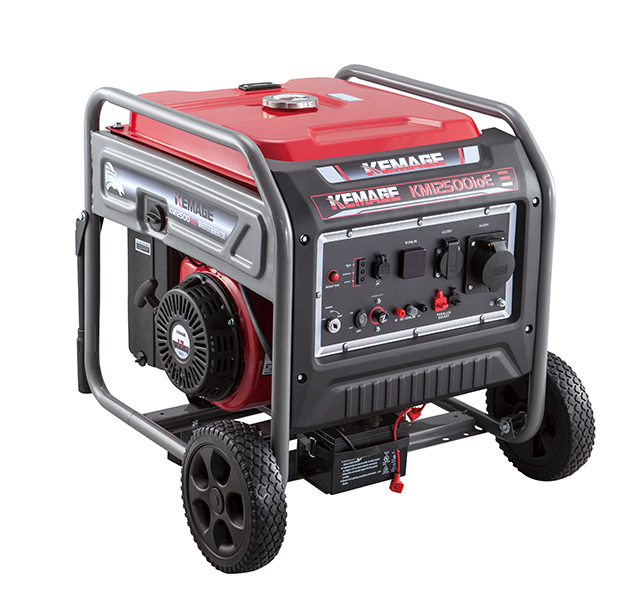

KM12500io-KB

KM12500io-KB

Rated power: 7000W
Maximum power: 8000W
Rated voltage: 230V
Rated frequency: 50/60Hz
Rated current: 304A

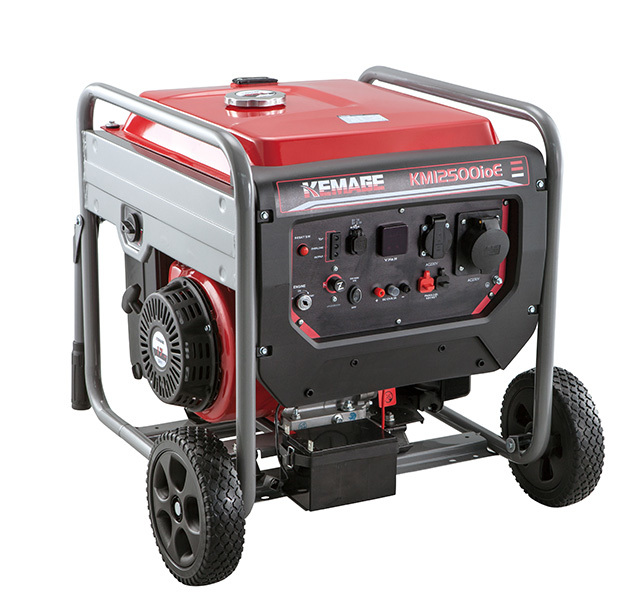

KM12500io-KA

KM12500io-KA

Rated power: 7000W
Maximum power: 8000W
Rated voltage: 230V
Rated frequency: 50/60Hz
Rated current: 30.4A

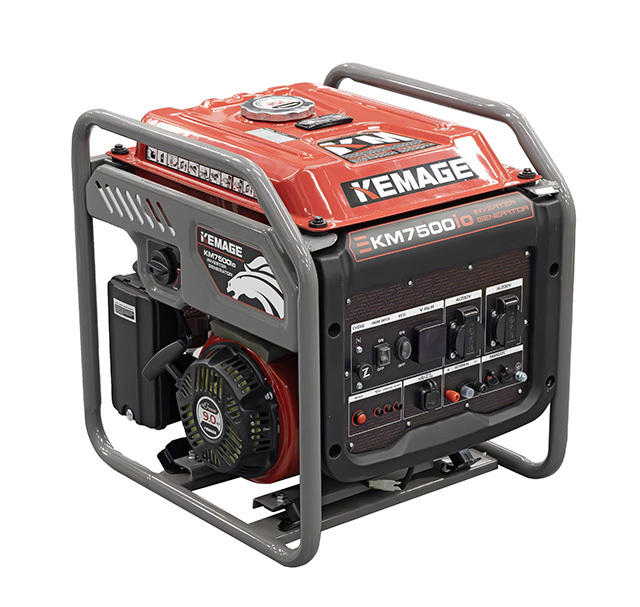

KM7500io-Q
